Description
Product Description

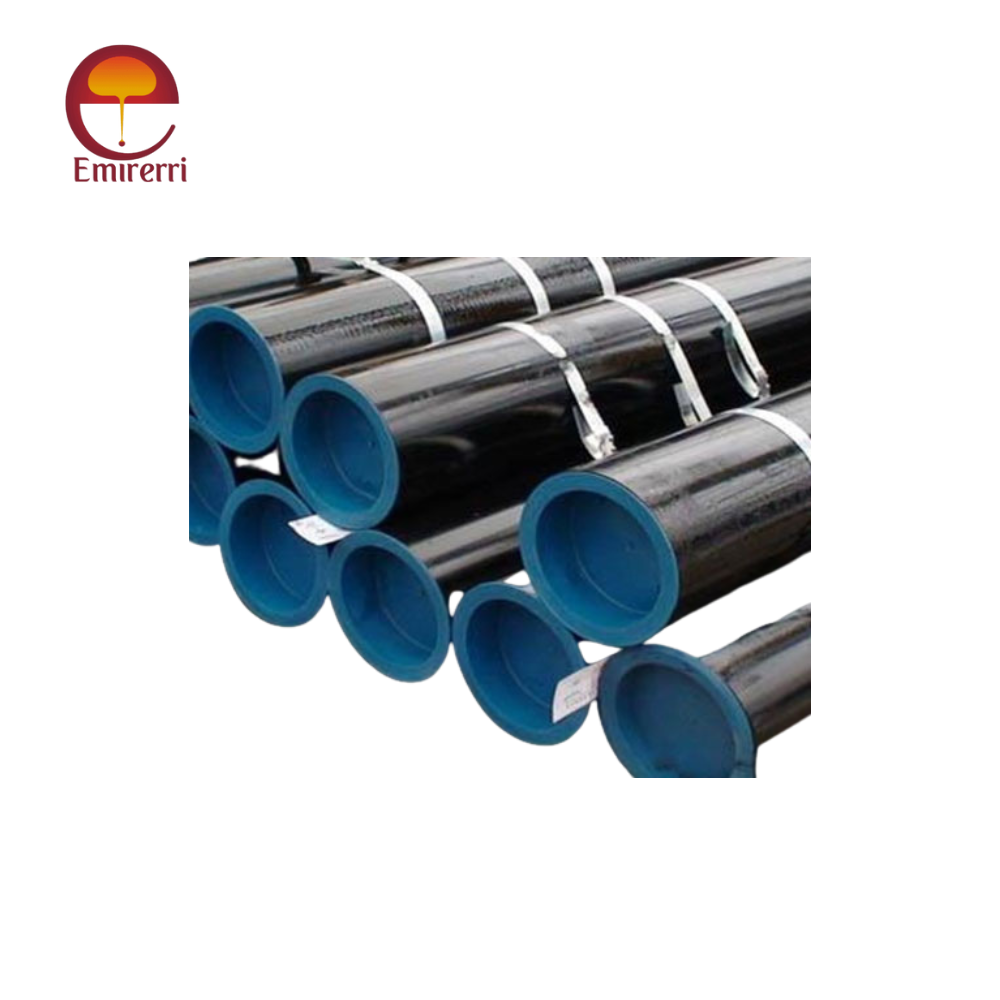

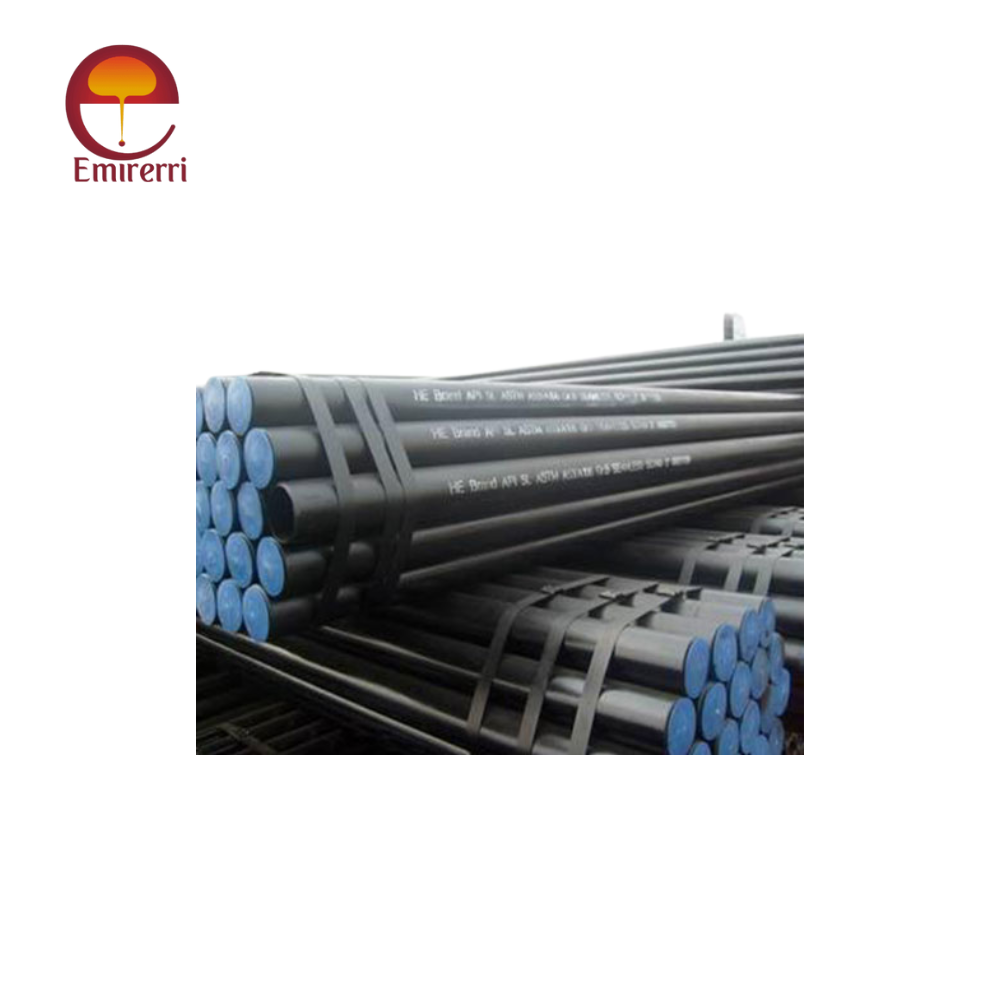

The API 5L Grade B X60 steel pipes are high-quality, seamless and welded steel pipes designed for the transportation of oil, gas, and water in the petroleum and natural gas industries. Manufactured to meet the specifications set by the American Petroleum Institute (API), these pipes offer superior performance, durability, and reliability.
Chemical Composite of API 5L Grade B X60
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.26 max |
| Manganese (Mn) | 1.10 max |
| Phosphorus (P) | 0.030 max |
| Sulfur (S) | 0.030 max |
| Silicon (Si) | 0.45 max |
| Nickel (Ni) | 0.50 max |
| Chromium (Cr) | 0.50 max |
| Copper (Cu) | 0.50 max |
| Vanadium (V) | 0.10 max |
| Molybdenum (Mo) | 0.15 max |
| Titanium (Ti) | 0.04 max |
Mechanical Properties of API 5L Grade B X60
| Property | Value |
|---|---|
| Yield Strength | 60,200 psi (415 MPa) |
| Tensile Strength | 75,400 psi (520 MPa) |
| Elongation | 21% (for a 2-inch gauge length) |
| Charpy V-Notch Impact Test | 27 Joules (minimum) at 0°C (32°F) |
Conclusion
Emirerri Steel employs advanced manufacturing techniques, including both seamless and welded processes, to produce API 5L Grade B X60 pipes. Our state-of-the-art facilities and stringent quality control measures ensure that each pipe meets the highest industry standards.
