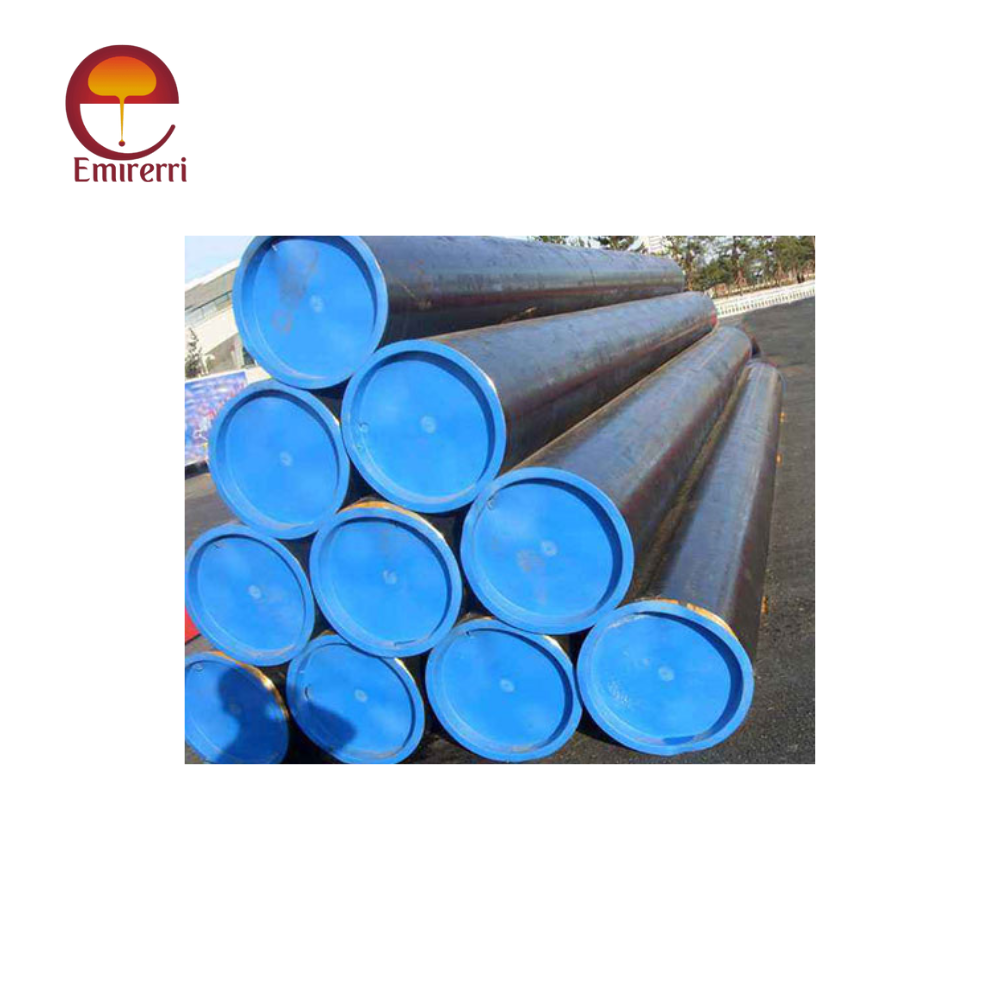

API 5L Grade B X70 steel pipes are premium quality, high-strength pipes specifically designed for the transportation of oil, gas, and water in the petroleum and natural gas industries. These pipes adhere to the rigorous standards set by the American Petroleum Institute (API), ensuring excellent performance, robustness, and durability.
Chemical Composition for API 5L Grade B X70
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.22 max |
| Manganese (Mn) | 1.60 max |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.015 max |
| Silicon (Si) | 0.45 max |
| Nickel (Ni) | 0.50 max |
| Chromium (Cr) | 0.50 max |
| Copper (Cu) | 0.50 max |
| Vanadium (V) | 0.10 max |
| Molybdenum (Mo) | 0.15 max |
| Titanium (Ti) | 0.06 max |
Mechanical Properties for API 5L Grade B X70
| Property | Value |
|---|---|
| Yield Strength | 70,300 psi (485 MPa) |
| Tensile Strength | 82,700 psi (570 MPa) |
| Elongation | 18% (for a 2-inch gauge length) |
| Charpy V-Notch Impact Test | 27 Joules (minimum) at -30°C (-22°F) |
Conclusion
Emirerri Steel utilizes advanced manufacturing processes, including seamless and welded techniques, to produce API 5L Grade B X70 pipes. Our cutting-edge facilities and rigorous quality control procedures ensure that each pipe meets the highest industry standards.
