Description
Product Description

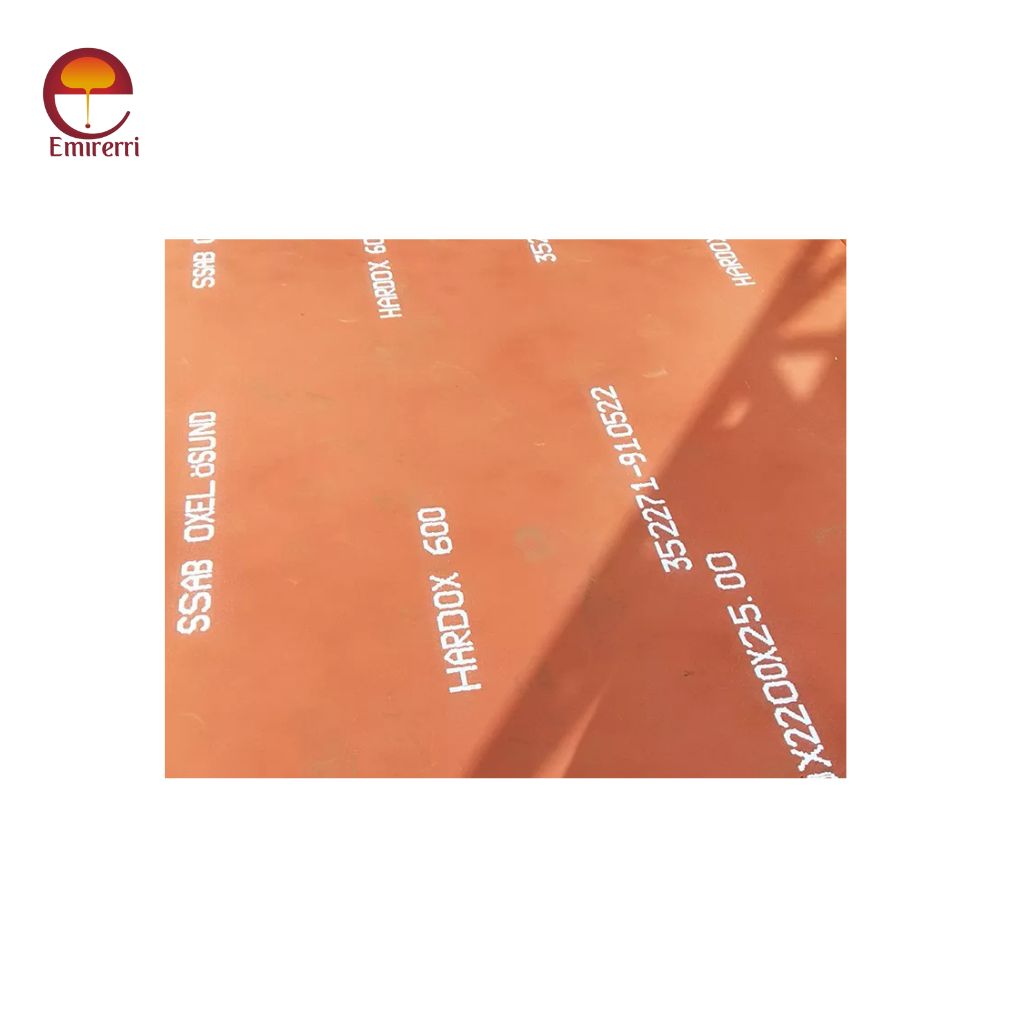

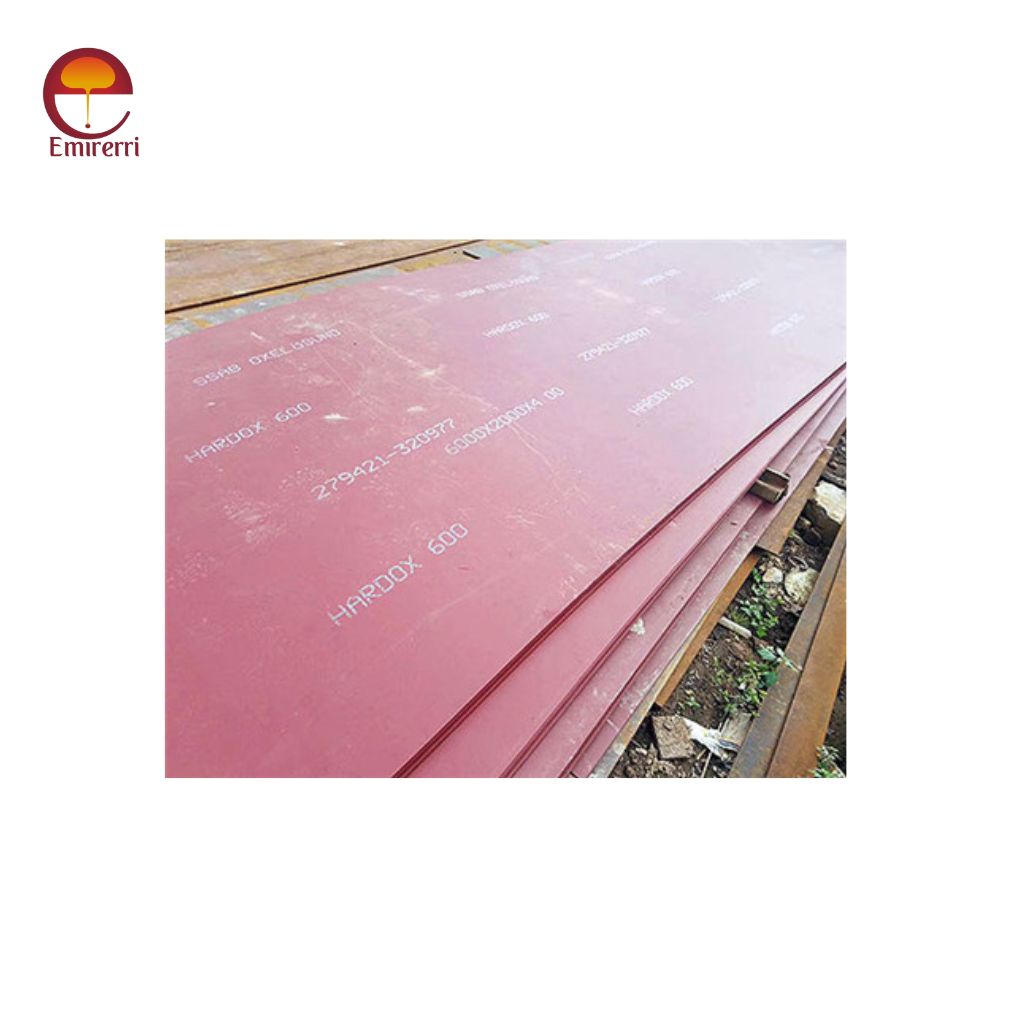

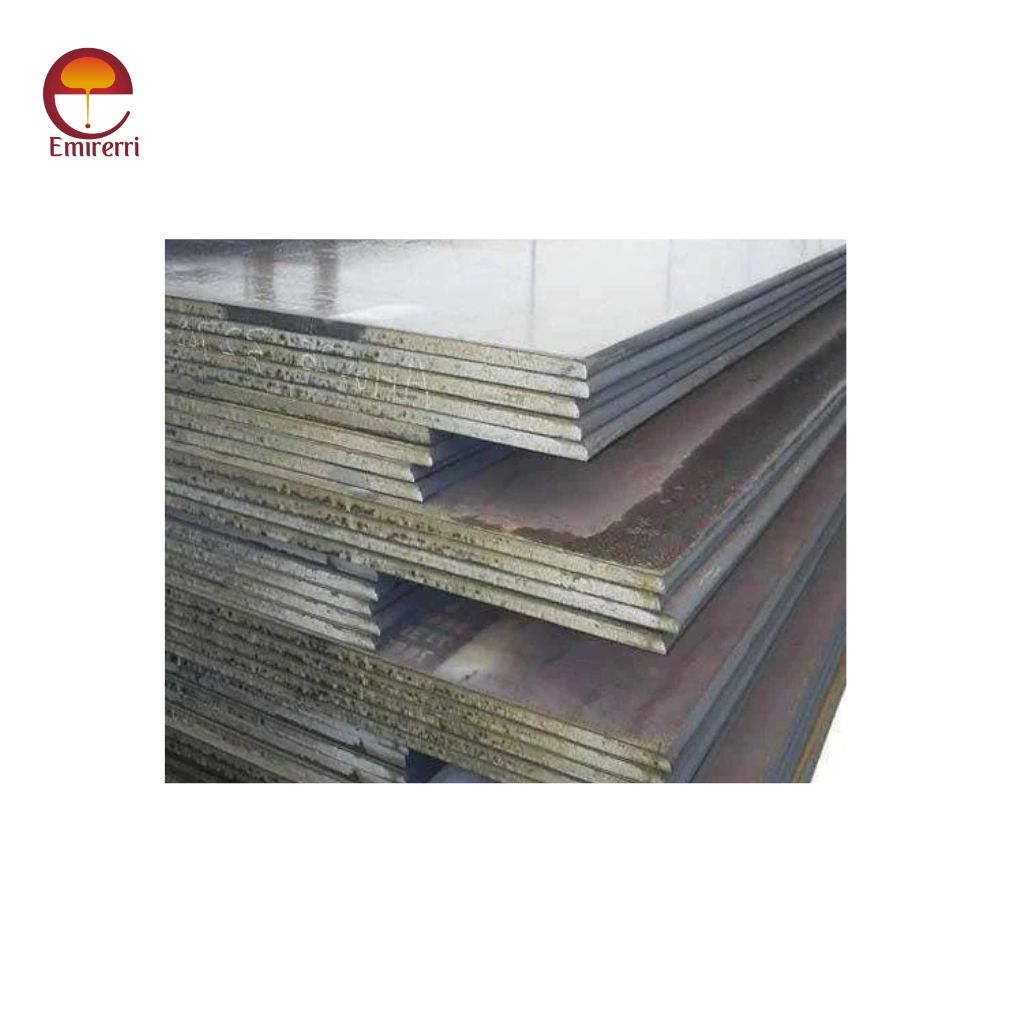

Hardox 600 Plate offers enhanced hardness and toughness compared to its predecessor, Hardox 500. It is designed for applications where extreme wear resistance is critical.
Key Features:
- High Hardness: Typically around 600 HBW, providing exceptional wear resistance.
- Toughness: Maintains good ductility and impact resistance.
- Versatile: Suitable for a wide range of heavy-duty applications across various industries.
Applications:
- Mining Equipment
- Construction Machinery
- Transport Equipment
- Agricultural Machinery
Hardox 600 Chemical Composition
| Element | Typical Content (%) |
| Carbon (C) | 0.20 - 0.30 |
| Manganese (Mn) | 1.5 - 2.5 |
| Silicon (Si) | 0.5 - 1.0 |
| Chromium (Cr) | 0.5 - 1.5 |
| Molybdenum (Mo) | 0.3 - 0.5 |
| Nickel (Ni) | 0.5 - 1.5 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.01 |
| Boron (B) | ≤ 0.005 |
Hardox 600 Mechanical Properties
| Property | Value |
| Yield Strength (min) | 600 MPa (87 ksi) |
| Tensile Strength (min) | 700 - 900 MPa (102 - 131 ksi) |
| Elongation (min) | 5 - 10% (depending on thickness) |
| Hardness | Approximately 600 HBW |
| Impact Toughness | Typically ≥ 20 J at -40°C |
| Modulus of Elasticity | ~210 GPa |
Hardox 600 Physical Properties
| Property | Value |
| Density | ~7.85 g/cm³ |
| Thermal Conductivity | ~50 W/m·K |
| Specific Heat Capacity | ~470 J/kg·K |
| Melting Point | ~1500°C (2732°F) |
| Coefficient of Thermal Expansion | ~11 x 10^-6 /°C |
| Electrical Resistivity | ~0.2 µΩ·m |
