Product Description

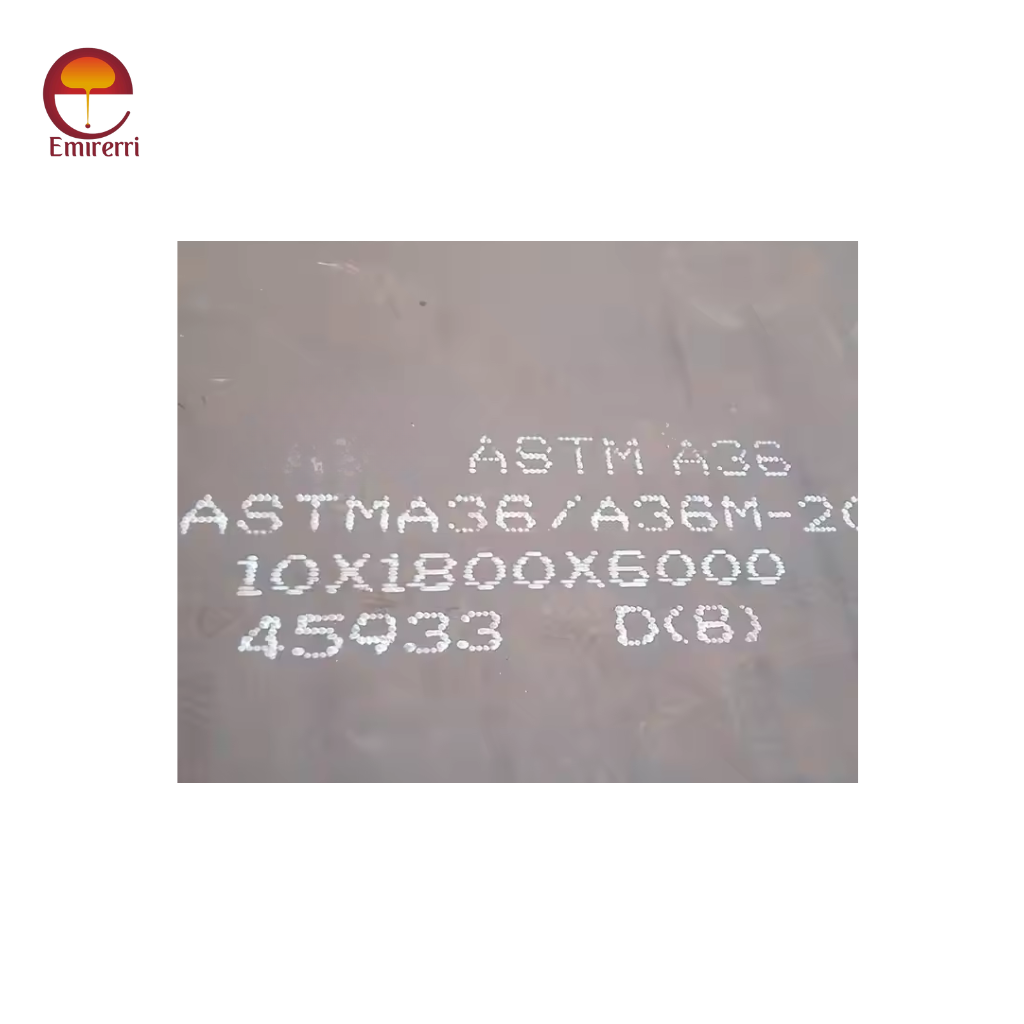

ASTM A36 steel plates are low-carbon structural steel plates commonly used in a wide range of structural applications. The A36 Material Specification developed by ASTM International specifies the mechanical properties and chemical composition required for structural steel.
Applications
- Structural beams and columns in construction
- Heavy equipment manufacturing
- Bridges and infrastructure projects
- General fabrication and structural applications
Fabrication and Welding
ASTM A36 steel is easily fabricated and welded, making it suitable for a variety of structural applications. It can be cut, shaped, and formed into complex structures with standard welding processes such as MIG and TIG welding.
Standards and Certifications
ASTM A36 steel plates are manufactured according to ASTM standards and can be certified to meet specific quality and material specifications. Customers can request mill test reports or certification documentation.
Finishes
ASTM A36 steel plates can be supplied with various surface finishes, including hot-rolled, cold-rolled, and painted finishes, depending on the intended application and customer requirements.
ASTM A36 Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.26 |
| Manganese (Mn) | 0.60 – 0.90 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.05 |
| Silicon (Si) | ≤ 0.40 |
| Iron (Fe) | Balance (to 100%) |
ASTM A36 Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength (min) | 36,000 psi (250 MPa) |
| Ultimate Tensile Strength (min) | 58,000–80,000 psi (400–550 MPa) |
| Elongation (min) | 20% in 8 in (200 mm) |
| Reduction of Area (min) | 50% |
| Hardness (Brinell) | ≤ 143 HB |
| Modulus of Elasticity | 29,000,000 psi (200 GPa) |
ASTM A36 Physical Properties
| Property | Value |
|---|---|
| Density | 490 lb/ft³ (7,850 kg/m³) |
| Melting Point | 2,500°F (1,370°C) |
| Thermal Conductivity | 43 W/m·K (at 100 °C) |
| Electrical Resistivity | 0.000015 μΩ·m |
| Modulus of Elasticity | 29,000,000 psi (200 GPa) |
| Poisson's Ratio | 0.26 - 0.29 |
| Hardness | Approximately 120 HB (Brinell) |
