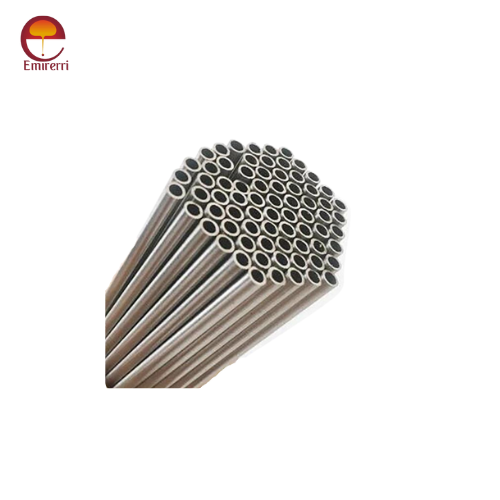

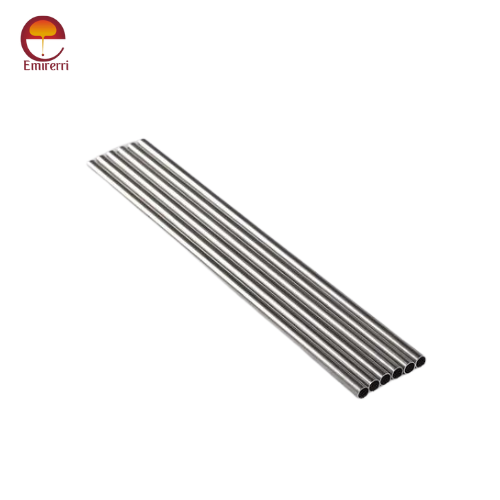

Capillary Pipe and Tube

AttributeDescription
Product NameCapillary Pipe and Tube
MaterialStainless Steel, Carbon Steel, Alloy Steel
Production ProcessSeamless, Welded
Diameter Range0.1 mm to 20 mm
Wall Thickness0.1 mm to 2 mm
LengthCustom lengths as per requirement, typically 6 meters
Surface FinishBright Annealed, Polished, Pickled
StandardsASTM, ASME, DIN, EN, JIS
CertificationISO 9001, API 5L, CE



Enquiry Now

Categories: ,

Description

Product Description

Capillary tubes are very narrow tubes, typically with a diameter of less than 1 millimeter. They are known for their ability to exploit capillary action, a phenomenon where the surface tension of a liquid draws the liquid into the tube against gravity.

Capillary pipes are slightly larger than capillary tubes, usually ranging from 1 millimeter to a few millimeters in diameter. They don’t rely on capillary action for fluid flow and are used for more general applications where a narrow passage for fluids is needed.

Chemical Composition Capillary Pipe and Tube

ElementComposition (%)
Carbon (C)≤ 0.08%
Manganese (Mn)≤ 2.00%
Silicon (Si)≤ 1.00%
Phosphorus (P)≤ 0.045%
Sulfur (S)≤ 0.030%
Chromium (Cr)18.0-20.0%
Nickel (Ni)8.0-12.0%
Molybdenum (Mo)≤ 2.00%

Mechanical Properties of Capillary Pipe and Tube

PropertyValue
Tensile Strength (MPa)550 - 750
Yield Strength (MPa)≥ 245
Elongation (% in 50mm)≥ 25
Hardness (Brinell HB)≤ 250
Density (g/cm³)7.93

Conclusion

Emirerri Steel’s Stainless Steel Capillary Pipes and Tubes are engineered to meet the exacting demands of precision applications. With a robust combination of chemical resistance and mechanical strength, these tubes ensure reliability and performance in diverse industrial and medical sectors.
