Product Description

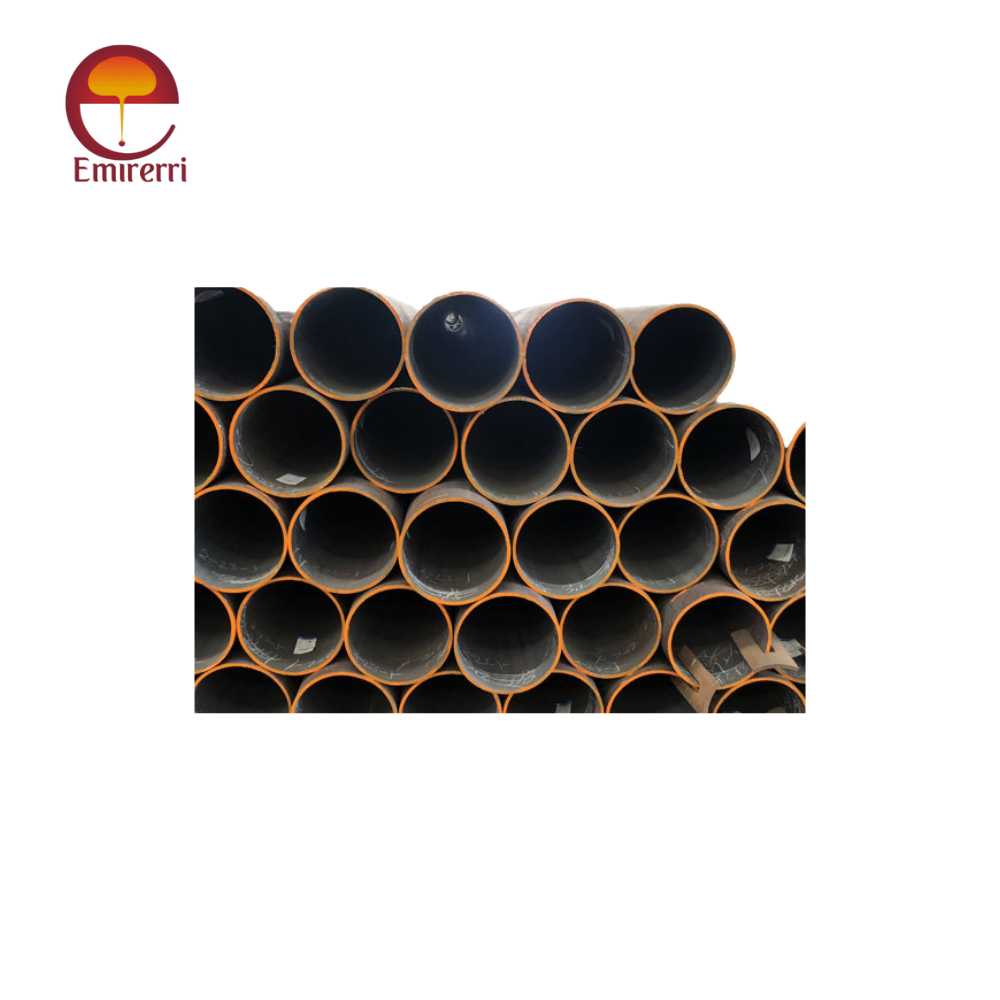

API 5L Grade B X42 is a specification of steel pipes used primarily for conveying gas, water, and oil in the petroleum and natural gas industries. The “API” refers to the American Petroleum Institute, which sets the standards for these products. The Grade B indicates a specific grade of steel with particular chemical and mechanical properties, while “X42” denotes the minimum yield strength of 42,000 psi (pounds per square inch).
Chemical Composition of API 5L Grade B X42
| Element | Maximum % |
|---|---|
| Carbon (C) | 0.26 |
| Manganese (Mn) | 1.2 |
| Phosphorus (P) | 0.03 |
| Sulfur (S) | 0.03 |
| Silicon (Si) | 0.45 |
| Nickel (Ni) | 0.4 |
| Chromium (Cr) | 0.3 |
| Copper (Cu) | 0.4 |
| Molybdenum (Mo) | 0.15 |
| Vanadium (V) | 0.08 |
| Niobium (Nb) | 0.05 |
| Titanium (Ti) | 0.04 |
Mechanical Properties of API 5L Grade B X42
| Property | Value |
|---|---|
| Yield Strength (YS) | Minimum 42,000 psi (290 MPa) |
| Tensile Strength (TS) | Minimum 60,000 psi (415 MPa) |
| Elongation | 21% minimum in 2 inches (50 mm) |
| Charpy Impact Test | Varies by thickness and test temperature, typically around 27 J at 0°C |
| Hardness (Brinell) | Maximum 241 HBW |
| Modulus of Elasticity | 200 GPa (29,000 ksi) |
| Poisson's Ratio | 0.3 |
| Reduction of Area | 35% minimum |
| Fracture Toughness | High fracture toughness for use in high-pressure environments |
Conclusion
API 5L Grade B X42 is a versatile and reliable steel pipe that meets the demanding requirements of the oil and gas industry. Its combination of strength, durability, and compliance with international standards makes it a preferred choice for pipeline construction and other critical applications.
